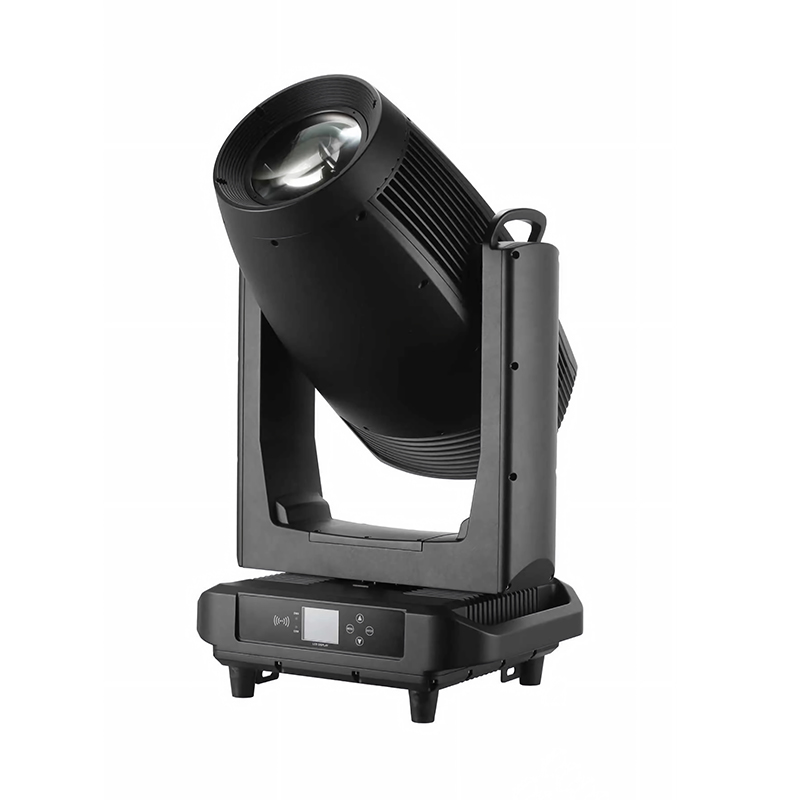

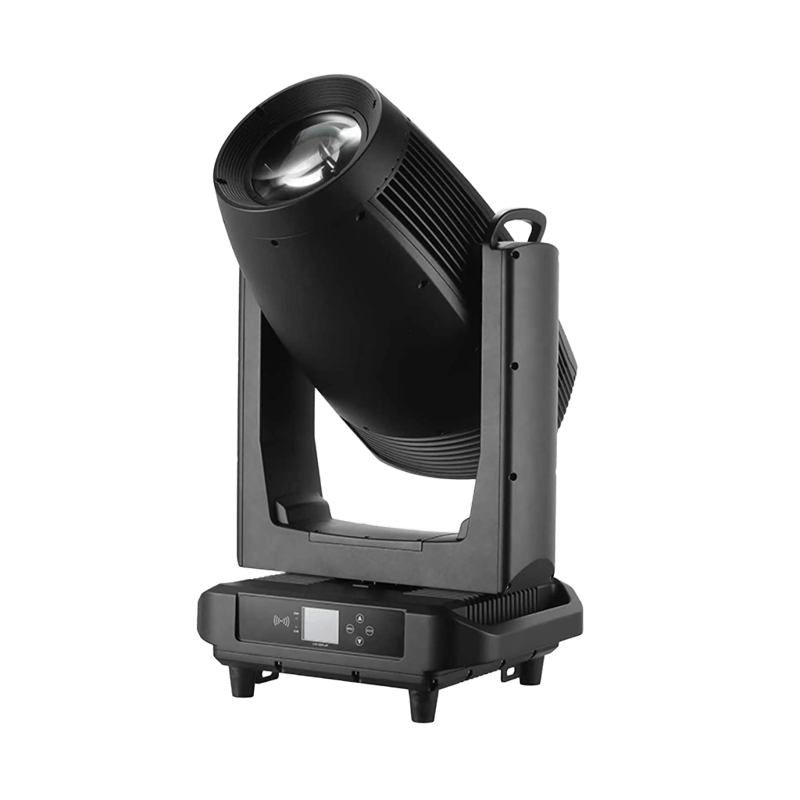

1200w Moving Profile BSWF
-

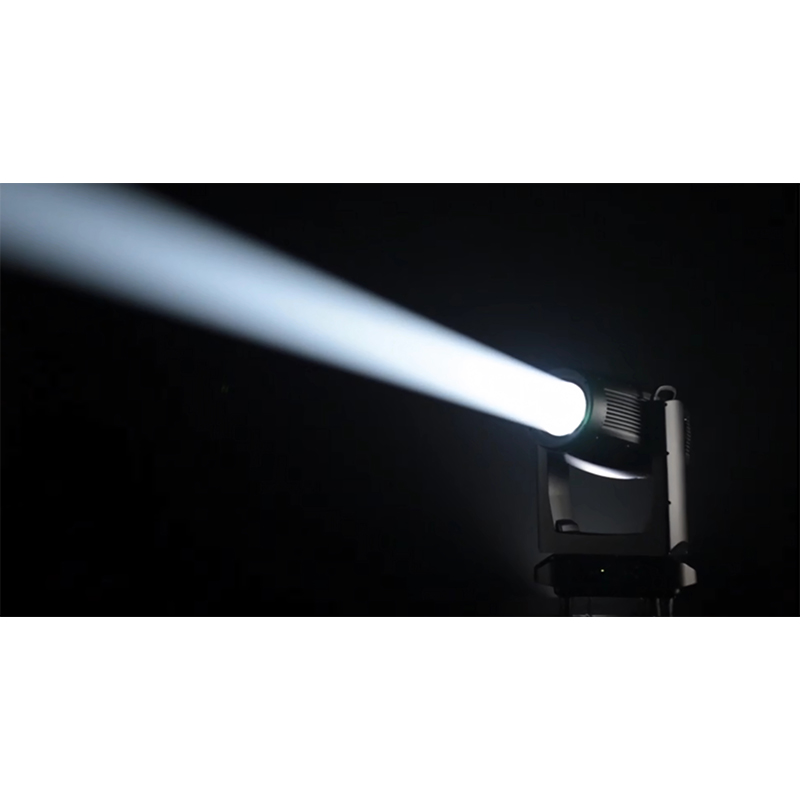

he unique optical design is central to the fixture’s professional performance. In high-level stage lighting, optical design does not simply affect brightness. It influences beam definition, edge quality, image clarity, wash behavior, and overall scene precision with Auto Focus.
Film-grade dimming, even at the final 0.4%, still provides perfect spot, making it ideal for theaters, studio and film with high demands for spot and color wash gradation.
Description
Voltage: AC100~240V 50/60HZ
Power: 1500W
Light Source: 1200W LED Module
Color Temperature: 7200K
Standard Mode: Ra>70
High CRI Mode: Ra>90
Zoom Angle: 5°-52°
Auto Focus
5-Phase magnetic positioning motor (patented technology)
Color wheel: 1 color wheel, 6 colors + white open
Fixed gobo: 1 x 8 gobos + white open
Rotating gobo: 1 x 7 gobos + white open
Animation wheel: 1 for creating outstanding water ripple and flame effects with specified gobos
Prisms: 2 prism wheels, 1 x 4 circle facets + 1 x 4 linear facets, all bidirectionally rotatable
Atomizers: 2 atomizers, light atomization + medium atomization
Framing: 4 blades, each blade Direction and angle can be independently controlled; a single piece can be completely closed to the light.
Farming angle: The entire framing module can rotate ±60°.
Iris: Mechanical linear iris.
Linear CMY color mixing system, linear CTO color temperature adjustment.
Motion: P/T 16-bit; Pan 540°, Tilt 270°, automatic correction for P/T position misalignment; specially designed horizontal/vertical precision locking.
Control Methods: DMX512, Art-net, sACN, CRMX wireless, NFC, self-propelled, voice-activated, master-slave, with RDM function.
Channel Modes: 36CH, 42CH.
Dimming: 0~100% smooth dimming.
Strobe: Multiple speed strobe effects; strobe frequency 1~30Hz.
Appearance: Metal, black.
Connection Method: DMX512 input/output / power input/output.
Maximum ambient temperature: 40°C
Minimum operating temperature: -10°C
Maximum surface temperature: 85°C
IP rating: IP66
Lamp dimensions: 338mm (13.3"), 430mm (16.9"), 780mm (30.7")
Net weight: 37kg (80 lbs)

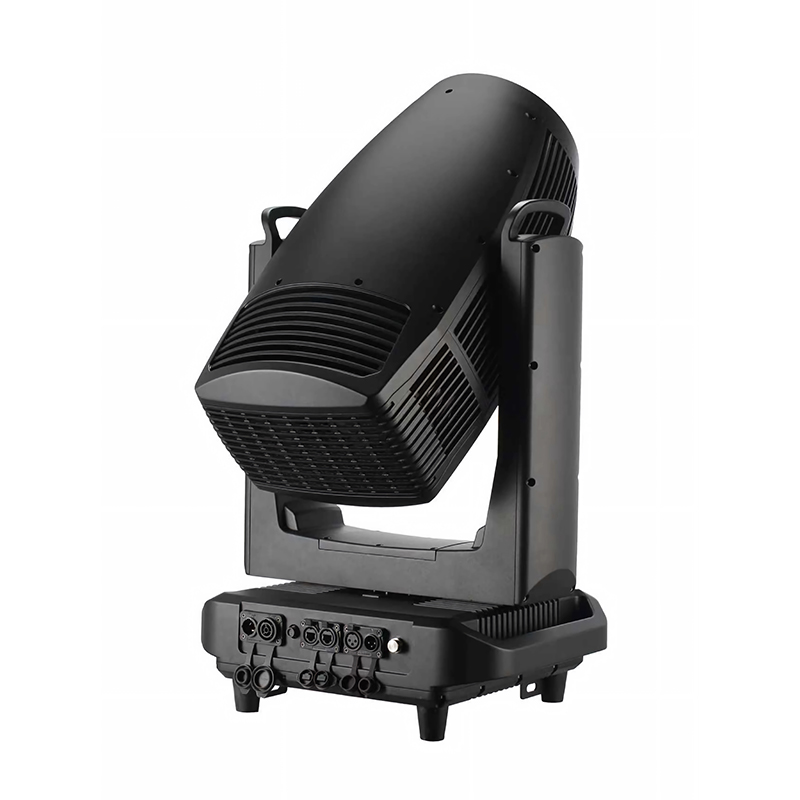

The black oxide film on the heat sink not only improves heat dissipation but also gives the aluminum excellent wear resistance, corrosion resistance, and insulation, extending its service life in harsh environments. The black oxide film is responsible for maximizing heat dissipation to the surrounding space through radiation, and is the core guarantee that high-power lamps maintain high brightness, power output, and light decay even after prolonged use.
