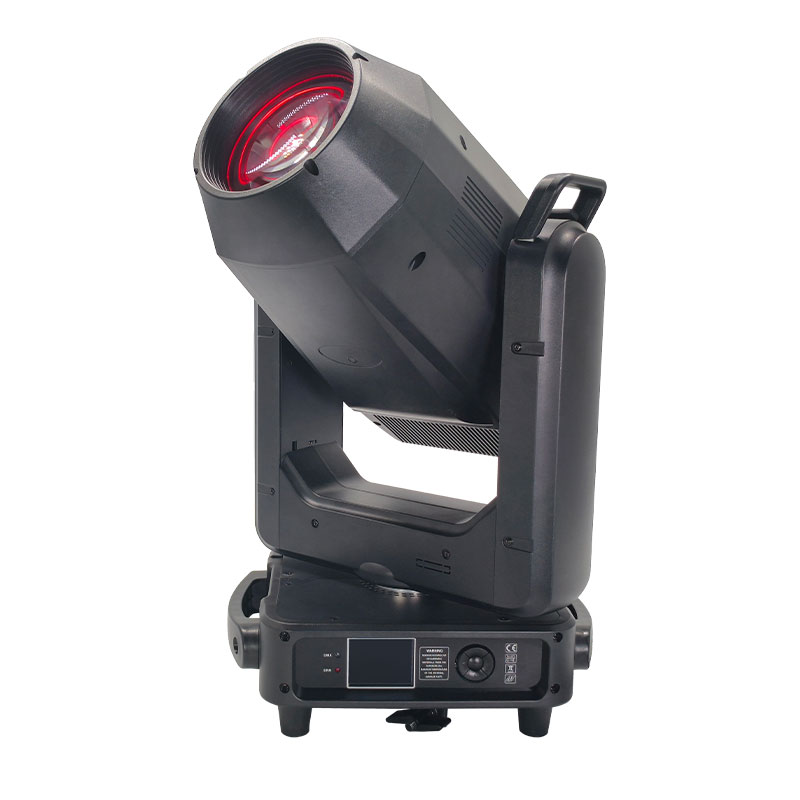

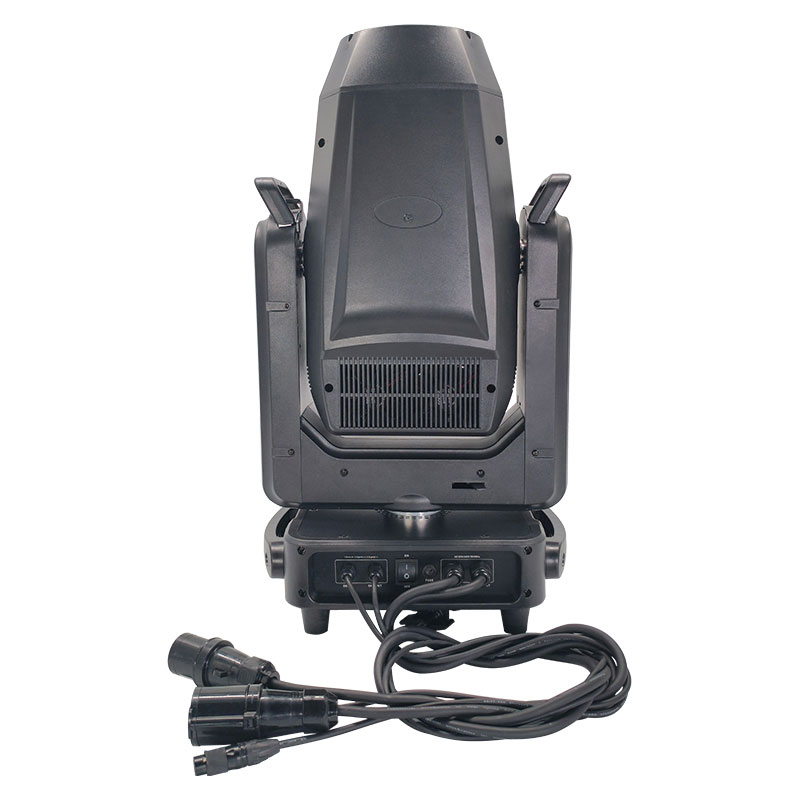

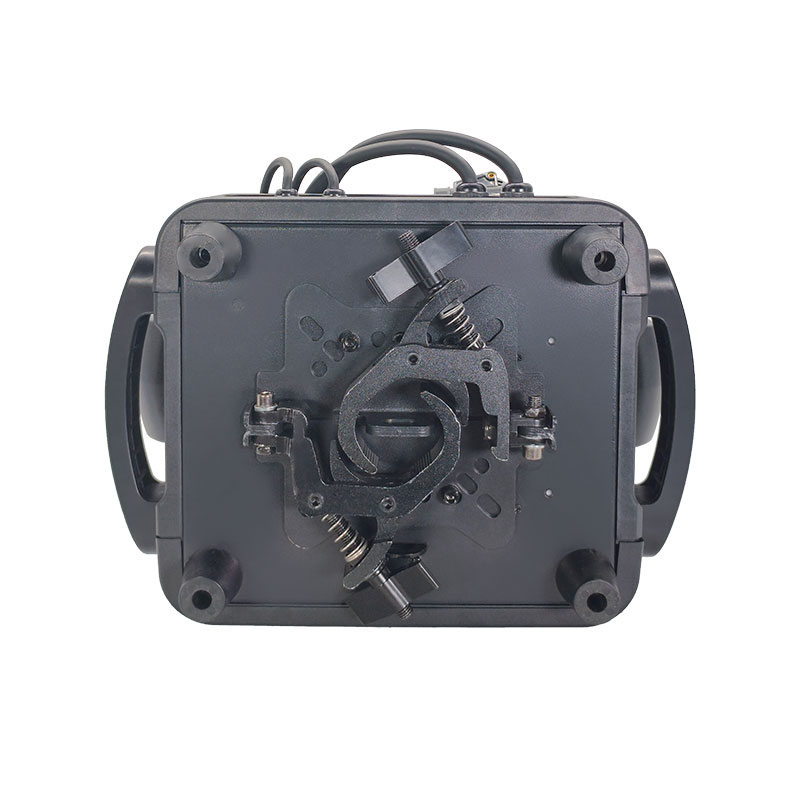

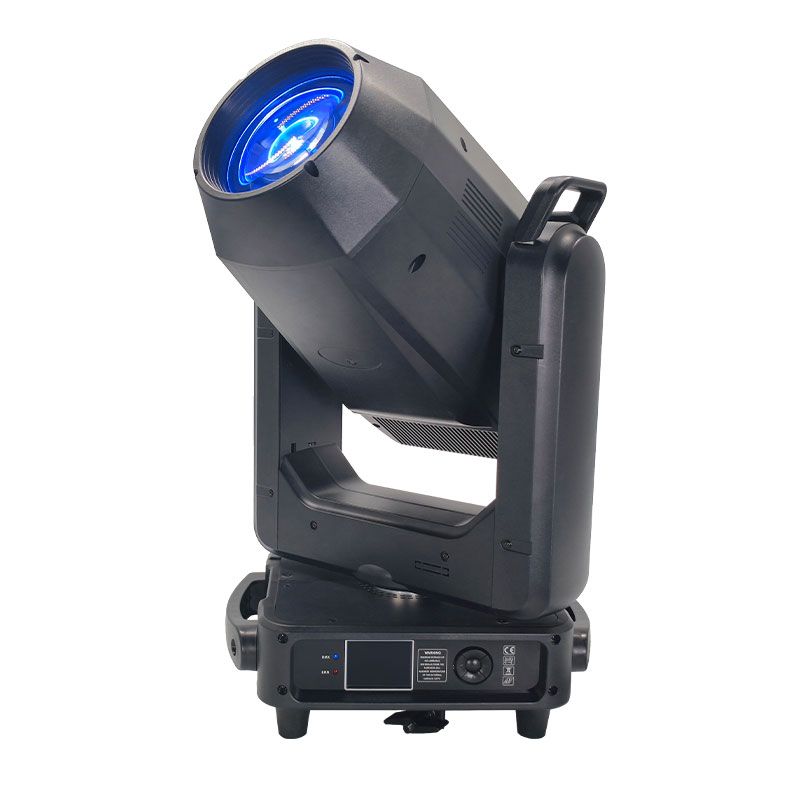

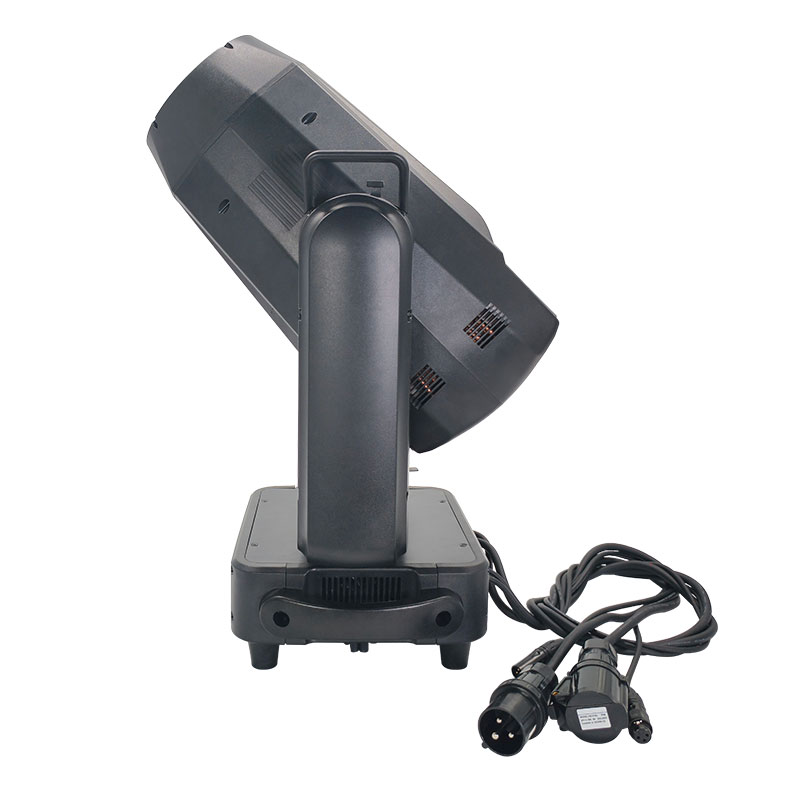

800w LED Moving Profile BSWF
-
The 800W BSWF Moving Profile combines four key functions in one fixture: beam, spot, wash and framing. This multifunction design gives lighting designers more flexibility while helping reduce the number of fixtures required in complex lighting setups.
From long-throw stage effects to precise front focus, from wash coverage to controlled framing projection, this fixture supports a wide range of professional lighting needs across live productions and installation projects.
Description
Voltage: AC100-240V, 50/60Hz
Rated Power: 1000W
Light Source: 800W LED Module
LED Lifespan: 20,000 hours
Color Temperature: 6500K
Aperture: 150mm
Color Rendering Index: Standard Mode Ra>70, High-Rendering Mode Ra>90
Luminous Flux: 32,000lm
Signal Interface: 3-pin XLR
Control Methods: DMX512, RDM, Auto, Master-Slave, Voice Control
Channel Mode: 34 international standard DMX512 channels
Display System: 2.7-inch touchscreen LCD with Chinese and English display, 180-degree rotation
Fixed Colors: 5 colors + white open
Color Mixing System: Independent CMY color mixing system
Color Temperature Adjustment: Independent CTO 2800K-6500K linear adjustment
Prism Wheel: Rotating 3-way prism
Effect Wheel: Stunning simulations of dynamic flames, rippling water, and other dynamic effects
Fixed Gobos: 11 plug-in fixed gobos with an outer diameter of 25.4mm and an inner diameter of 19.5mm, plus a white circle
Rotating Gobos: 7 plug-in gobos with an outer diameter of 22.9mm, an effective diameter of 15mm, and a thickness of 1.1mm
Framing System: 4 independent cutting blades, each with independent light blocking and 90° rotation
Atomization: 0-100% linear atomization
Aperture: 6%-100% smooth adjustment
Zoom: 5.5°-60° linear zoom dimming
